New Holland FR9060

Coming in 2008 New Holland FR9060 4WD with 4300 engine hours and 3010 cutting hours

New Holland FR9060

Coming in 2008 New Holland FR9060 4WD with 4300 engine hours and 3010 cutting hours

Price on request

#25081-30

When you enter your E-mail address, we will send you the Dekra report.

Technical specifications

Stock Number 25081-30
Brand New Holland
Model FR9060
Engine hours 4363
Road speed (km/h) 40
Drum hours 3062
Attr 2 or 4 wheel drive 4 WD
Engine Brand Iveco
Engine type L6
Engine Power HP 531
Engine Power (KW) 395
Front Tires Brand Good Year
Rear Tires Brand Michelin
Front Tires Size 800/75R32
Rear Tires Size 600/65R28
Front Tires profile 63
Rear Tires Profile 75
Emission Level Tier 3

Type knife drum Standard
Knife drum 24
Amount of knives installed 24

Options

Auto lubrication Yes
Automatic spout rotation Yes
Trailer hitch Yes
Innoculant system Yes
Climate control Yes
Electrical adjustable mirrors Yes
Electrical heated mirrors Yes
Side window wipers Yes
Rear window wiper Yes
Autocontour Yes
Electrical KP-gap adjustment Yes
Air compressor Yes
LED lights Yes
Sunblinds window(s) Yes
Prepared for Direct Disc Yes
Road registration papers Yes
Operators manual Yes
Blue-tooth phone device Yes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Machine documents

Harvester Guard ®Inspection certificate

Image gallery

Load more images >>>

Innovation
Knowledge
Quality
Transparent

AM: Harvester Guard® Inspection Report

V = working | X* = not working, note repair recommendations | n.a. = not applicable

New
- 5
Like New
- 4
Good
- 3
Fair
- 2
Poor
- 1

Levels

Anti-freeze level in °C - 35 °C
Cooling liquid level V
Engine oil level X*
Hydraulic oil level V
Left hand front end drive oil level V
Rear axle oil level V
Left hand rear end drive oil level V
Right hand rear end drive oil level V
Upper feedrolls gearbox oil level X*
Gearbox oil level V
4WD gearbox oil level V
Main gearbox pump drive V
Brake fluid V

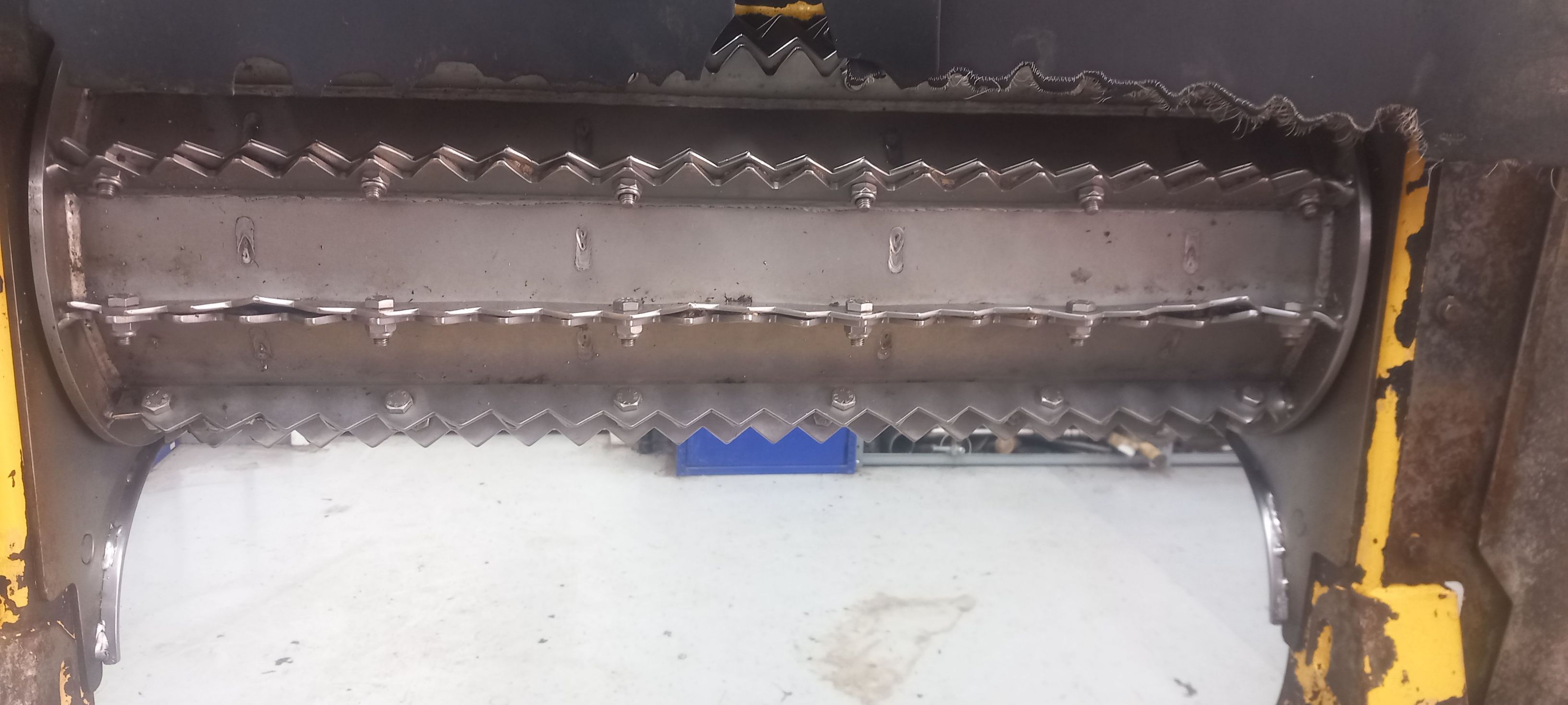

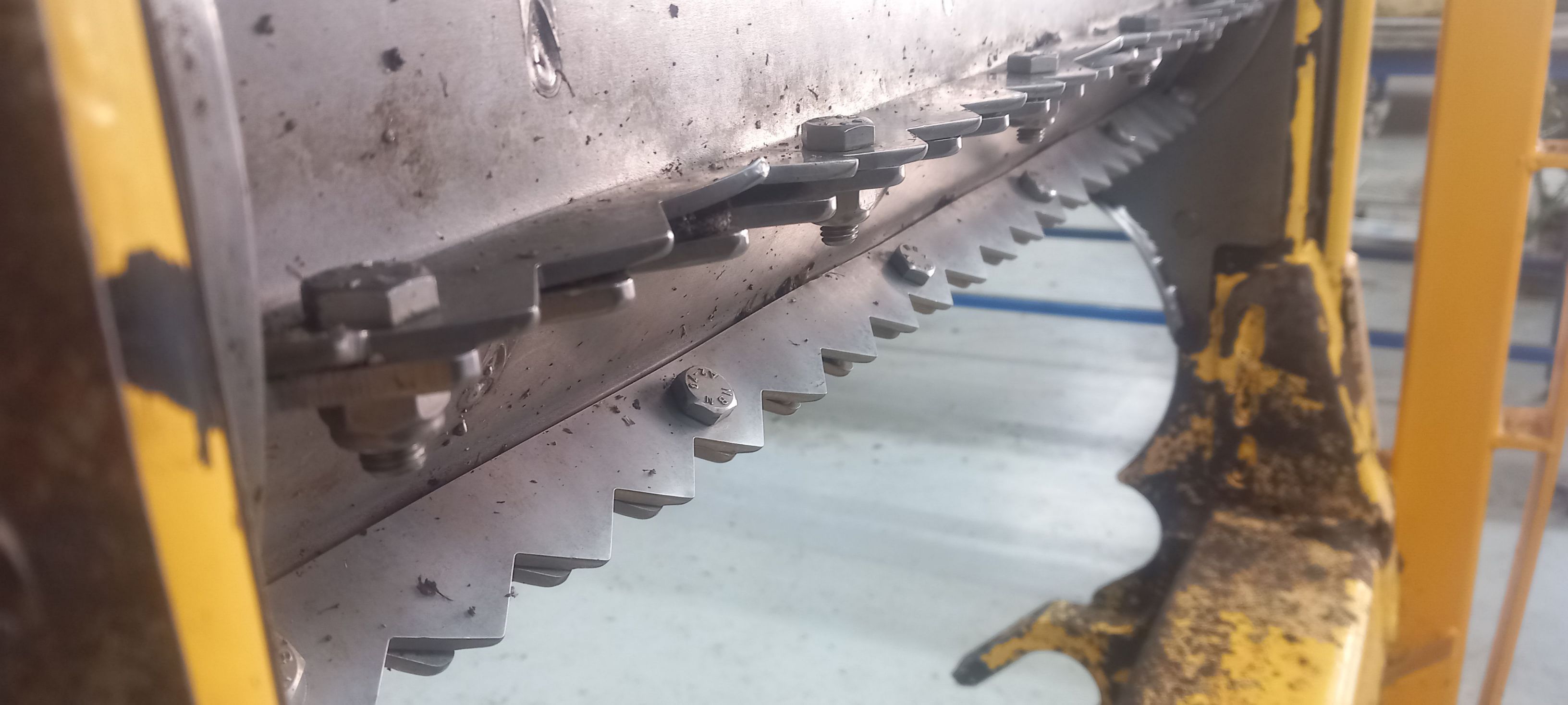

Knive drum

Type knife drum Standard
Knife drum 24
Amount of knives installed 24
Knife condition 2%
Knife drum configuration Corn
Shearbar front surface 3
Shearbar rear surface 3
Shearbar active position Rear
Left hand Knife drum bearing V
Right hand Knife drum bearing V
Knife drum bottom plate 3
Knife drum rear plate 2
Knife drum front cover 3
Knife drum stone cover 1
Sharpening stone 2
Left hand lift cilinder X*
Right hand lift cilinder X*

Kernal processor

Gras chute liner 1
Kernel Processor drive idler roller X*

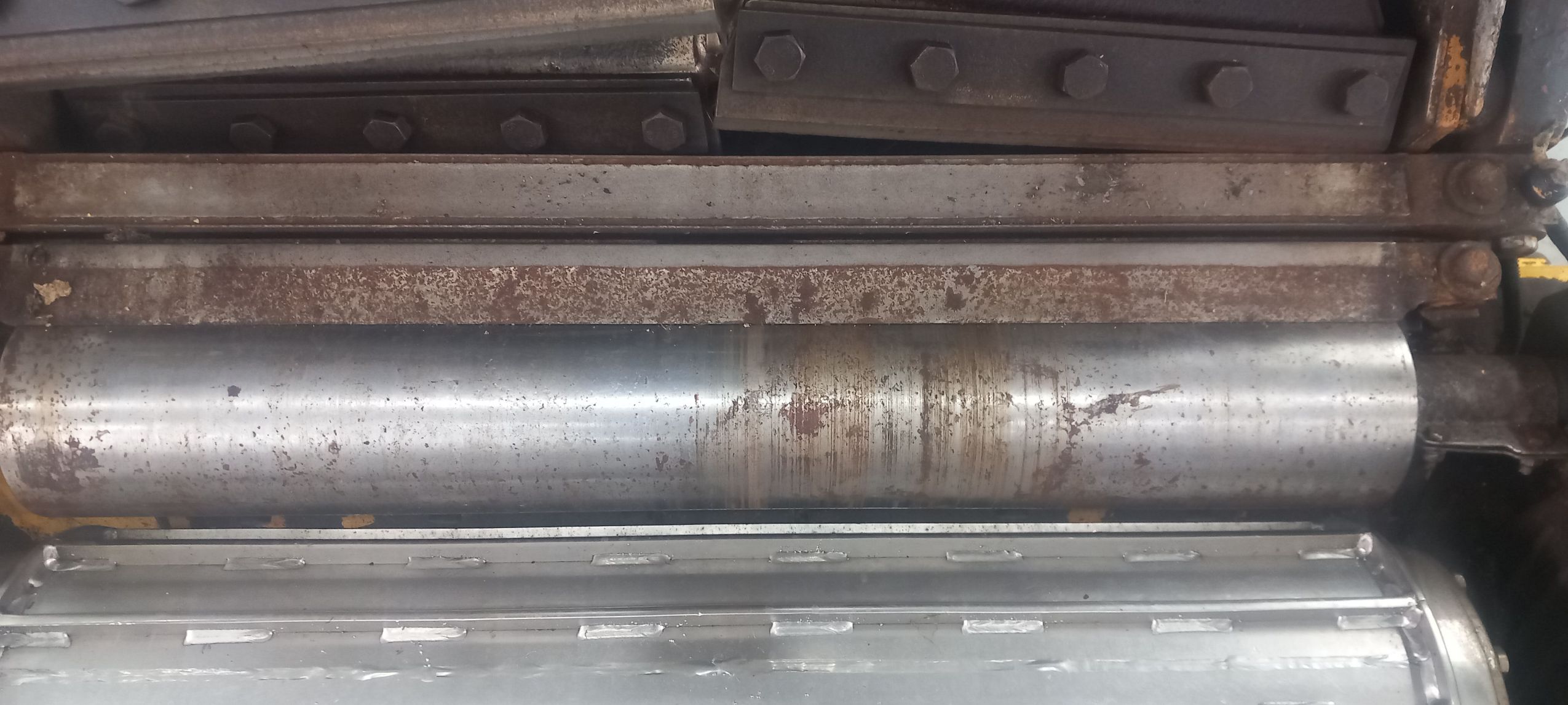

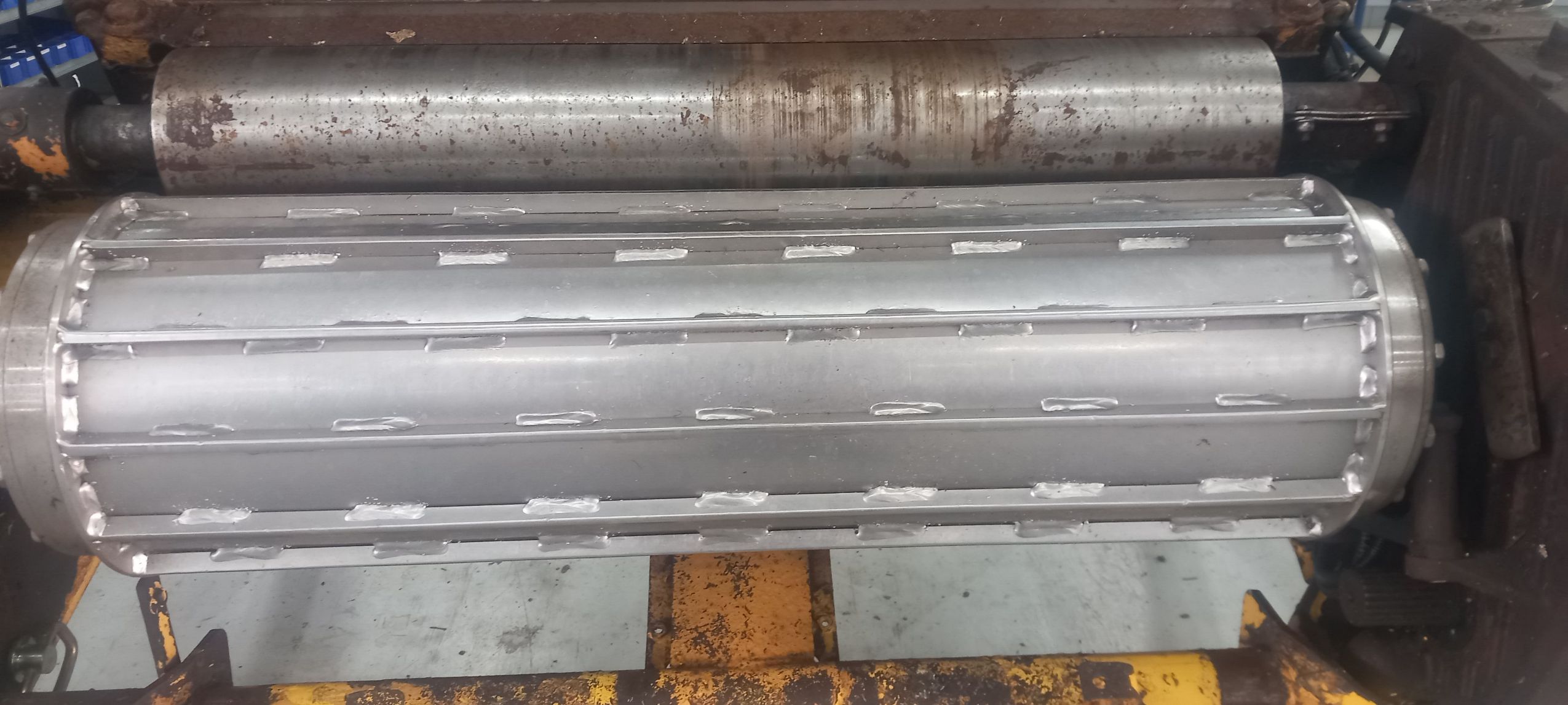

Feedrolls

Upper rear feedroll 3
Metal detector roll 3
Smooth roll scraper 2
Upper front feedroller left hand bearing V
Upper rear feedroller left hand bearing X*
Upper rear feedroller right hand bearing V
Metal detector roll left hand bearing V
Metal detector roll right hand bearing X*
Smooth roll left hand bearing X*
Smooth roll right hand bearing X*
Upper feedroller arm bushing X*
Feeder housing wear plates 3
Upper feedrolls drive shaft V
Upper feedrolls tension springs V
Upper feedrolls arm Bump stops X*
Upper feedrolls gearbox X*
Loc gearbox V

Corn cave

Corn cave liner 2
Corn cave side liners 3
Corn cave top liner 3

Blower

Blower paddles 66%
Blower liner 2
Blower housing V
Left hand blower bearing V
Right hand blower bearing V

Transition housing

Transition housing 3
Transition liners 3

Spout

Spout turnable wear shims 1
Spout swivel tube 3
Spout complete housing 3
Spout front liner 3
Spout middle liner 3
Spout rear liner 3
Spout side liners 5
Inner Spout deflector 3
Outer Spout deflector 3
Spout deflector liners 3

Engine

Dry engine V
Waterpump bearings X*
Engine belting V
Engine belt tensitioners V
Exhaust system X*
Engine mounting V
Airfilters X*
Rotary air screen X*
Rotary air screen rollers X*
Cleaner cooling package V
Engine belting idler roller V

Main drive

Main clutch 2
Main drive belt 2
Main belt tensioner bearings V

Operators station

Front window V
Rear window V
Cab door V
Cab door latch V
Cab right hand window V
Cab roof V
Cab front bottom cover V
Mirrors X*
Joystick V
Armrest control panel V
Steering wheel adjustment V
Front window wiper V
Rear window wiper blade V
Side window wipers blade V
Cab air filter X*
Seat V

Machine body

Front cover V
Left hand cover X*
Right hand cover V
Rear cover V

Functional test

Engine oil pressure low idle cold 4
Engine oil pressure high idle cold 4.8
Engine oil pressure low idle operating temperature 2.1
Engine oil pressure high idle operating temperature 4
Hydrostatic drive neutral V
Transmission shifting V
4WD working V
Foot brakes L/R V
Parking brake V
Main clutch working V
Autolube V
Length of cutt adjustment V
Header height control V
Header Lateral Tilt - if applicable V
Front hydraulics V
Dump valve (high flow hydraulics) N.A.
Spout turning V
Metal detector V
Spout deflector V
Sharping system V
Shearbar adjustment V
Cutterhead reverser V
Kernel Processor gap adjustment N.A.
Airconditioning cold V
Cab heating V
Electrical functions cabin V
Camera(s) N.A.
Radio V
Road & Working Lights V
Free of error codes X*
