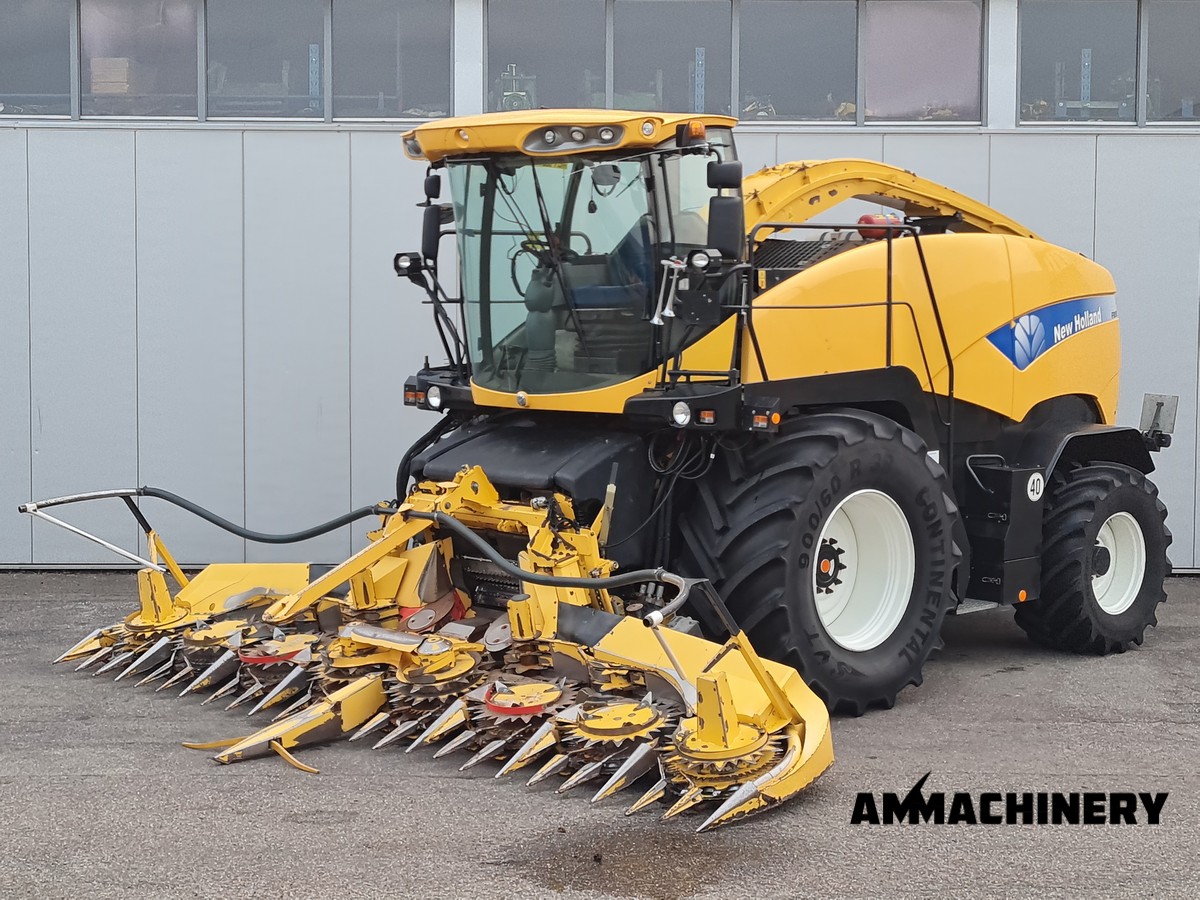

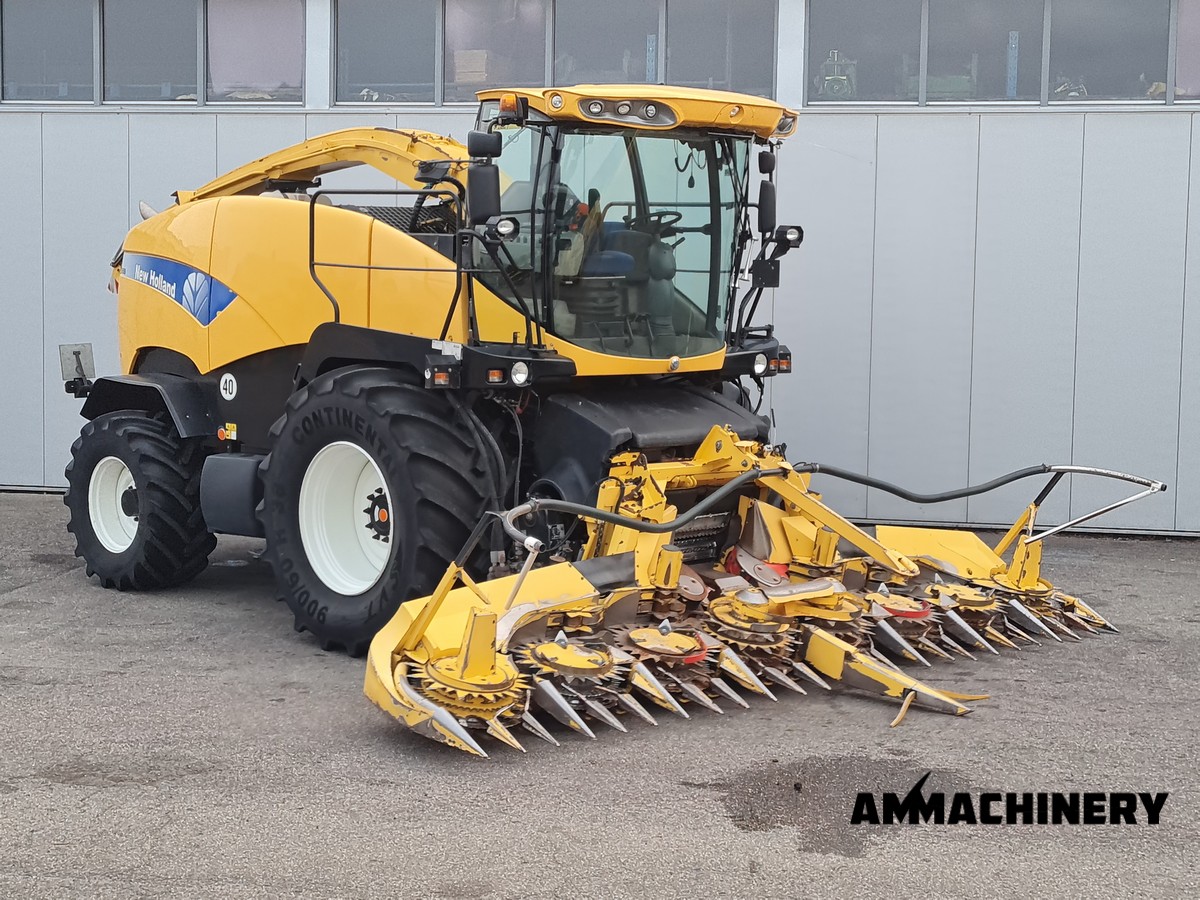

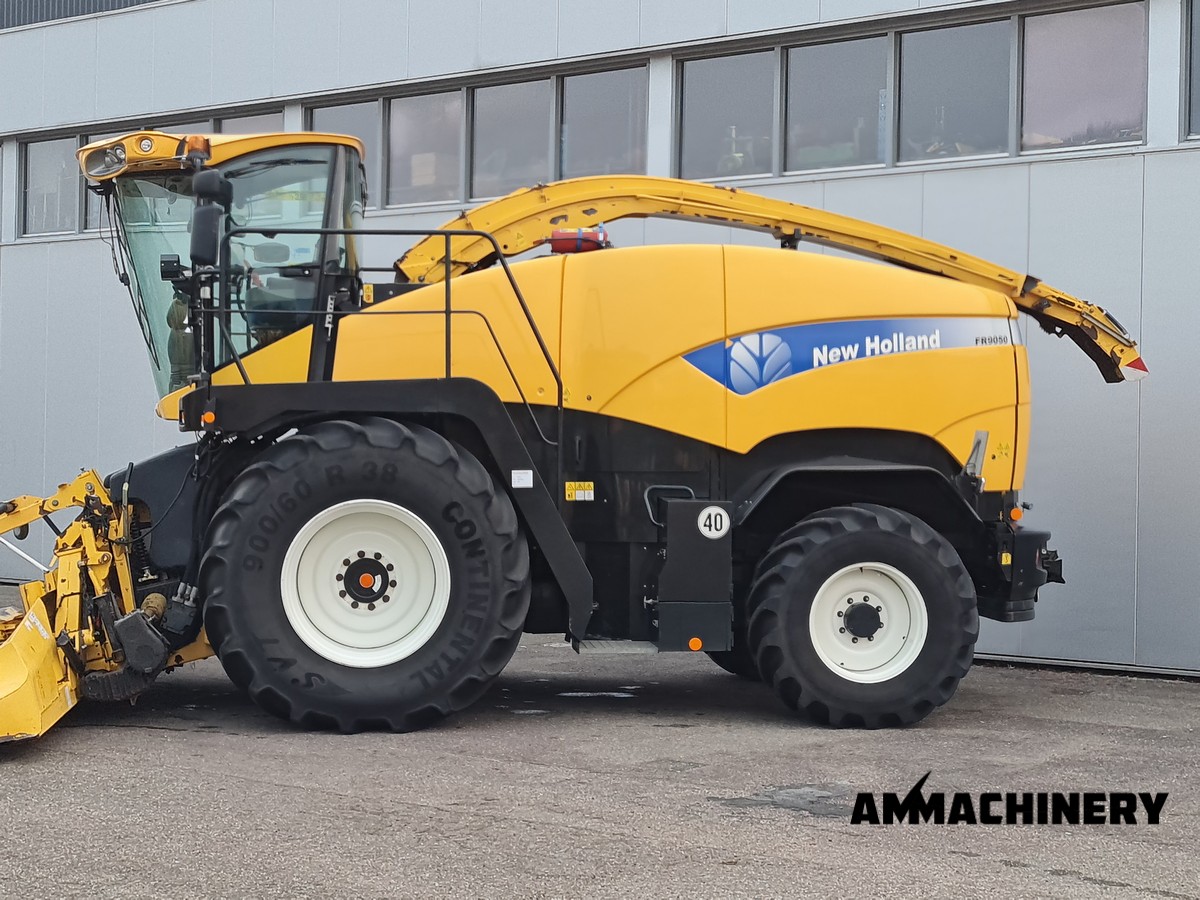

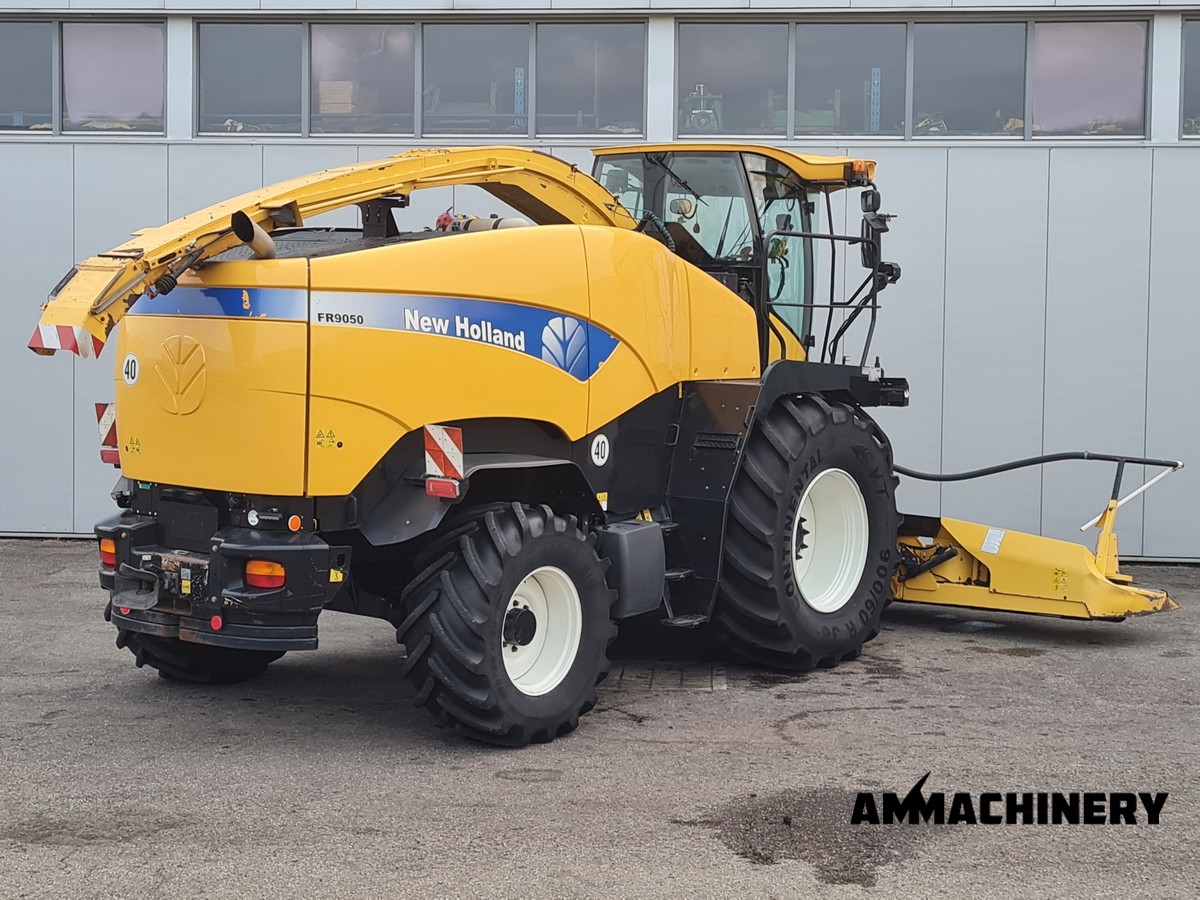

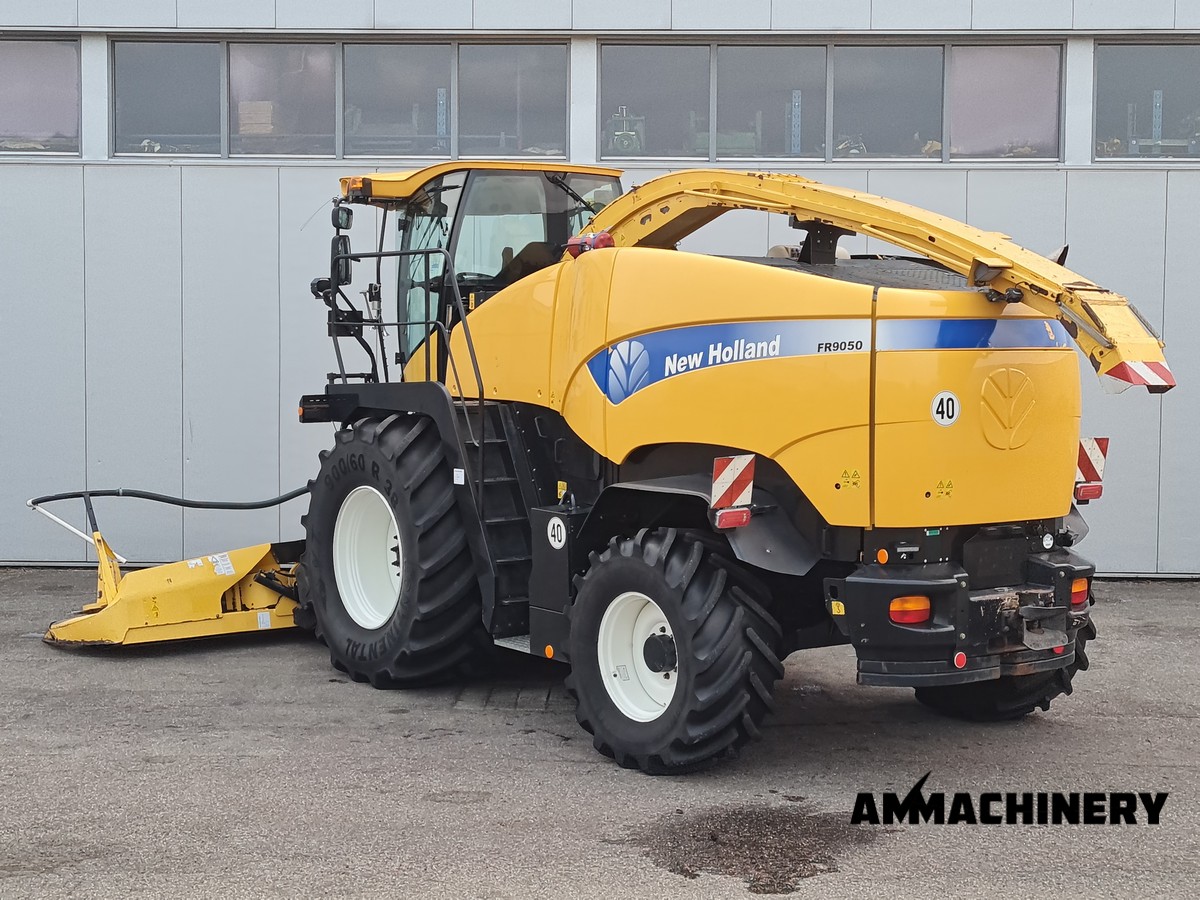

New Holland FR9050

2012 New Holland FR9050 including New Holland 600SFI (Kemper 360 Plus

New Holland FR9050

2012 New Holland FR9050 including New Holland 600SFI (Kemper 360 Plus

Price on request

#25072-30

When you enter your E-mail address, we will send you the Dekra report.

Technical specifications

Stock Number 25072-30
Brand New Holland
Model FR9050
Engine hours 3008
Road speed (km/h) 40
Drum hours 2302
Attr 2 or 4 wheel drive 4 WD
Engine Brand FPT
Engine type L6
Engine Power HP 445
Engine Power (KW) 343
Front Tires Brand Continental
Rear Tires Brand Michelin
Front Tires Size 900/60R38
Rear Tires Size 600/65R28
Front Tires profile 76
Rear Tires Profile 76
Emission Level Tier 3

Type knife drum Standard
Knife drum 32
Amount of knives installed 16

Kernel processor type Saw tooth

Options

Auto lubrication Yes
Automatic spout rotation Yes
Spout camera Yes
Rear weights Yes
Climate control Yes
Electrical adjustable mirrors Yes
Electrical heated mirrors Yes
Side window wipers Yes
Rear window wiper Yes
LED lights Yes
Sunblinds window(s) Yes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Machine documents

Harvester Guard ®Inspection certificate

Image gallery

Load more images >>>

Innovation
Knowledge
Quality
Transparent

AM: Harvester Guard® Inspection Report

V = working | X* = not working, note repair recommendations | n.a. = not applicable

New
- 5
Like New
- 4
Good
- 3
Fair
- 2
Poor
- 1

Levels

Anti-freeze level in °C - 35 °C
Cooling liquid level V
Engine oil level V
Hydraulic oil level V
Left hand front end drive oil level V
Rear axle oil level V
Left hand rear end drive oil level V
Right hand rear end drive oil level V
Upper feedrolls gearbox oil level X*
Gearbox oil level V
4WD gearbox oil level V
Main gearbox pump drive V
Brake fluid V

Knive drum

Type knife drum Standard
Knife drum 32
Amount of knives installed 16
Knife condition 45%
Knife drum configuration Grass
Shearbar front surface 3
Shearbar rear surface 3
Shearbar active position Rear
Left hand Knife drum bearing V
Right hand Knife drum bearing V
Knife drum bottom plate 3
Knife drum rear plate 3
Knife drum front cover 3
Knife drum stone cover 3
Sharpening stone 2
Left hand lift cilinder X*
Right hand lift cilinder X*

Kernal processor

Gras chute liner 4
Kernel Processor rolls 3
Kernel Processor front roll 3
Kernel Processor rear roll 3
Kernel processor type Saw tooth
Kernel Processor front roller left hand bearing V
Kernel processor front roller right hand bearing V
Kernel processor rear roller left hand bearing V
Kernel processor rear roller right hand bearing V
Kernel Processor drive belt 3
Kernel Processor drive tensioner bearings V
Kernel Processor drive idler roller V
Kernel Processor housing 3
Tensioner springs gap adjustment V

Feedrolls

Upper front feedroll 3
Upper front feedroll wear strips 3
Upper rear feedroll 3
Metal detector roll 3
Metal detector roll wear strips 2
Smooth roll 2
Smooth roll scraper 2
Upper front feedroller left hand bearing X*
Upper rear feedroller left hand bearing X*
Upper rear feedroller right hand bearing X*
Metal detector roll left hand bearing V
Metal detector roll right hand bearing V
Smooth roll left hand bearing V
Smooth roll right hand bearing X*
Upper feedroller arm bushing V
Feeder housing wear plates 3
Upper feedrolls drive shaft V
Upper feedrolls tension springs V
Upper feedrolls arm Bump stops X*
Upper feedrolls gearbox X*
Loc gearbox V

Corn cave

Corn cave liner 2
Corn cave side liners 3
Corn cave top liner 3

Blower

Blower paddles 38%
Blower liner 2
Blower housing V
Left hand blower bearing V
Right hand blower bearing X*

Transition housing

Transition housing 3
Transition liners 3

Spout

Spout turnable wear shims 3
Spout complete housing 3
Spout front liner 3
Spout middle liner 3
Spout rear liner 3
Spout side liners 2
Inner Spout deflector 3
Outer Spout deflector 3

Engine

Dry engine V
Waterpump bearings V
Engine belting V
Engine belt tensitioners V
Exhaust system V
Engine mounting V
Airfilters V
Rotary air screen V
Rotary air screen rollers V
Cleaner cooling package V
Engine belting idler roller V

Main drive

Main clutch 3
Main drive belt 4
Main belt tensioner bearings V

Operators station

Front window V
Rear window V
Cab door V
Cab door latch V
Cab right hand window V
Cab roof V
Cab front bottom cover V
Mirrors V
Joystick V
Armrest control panel V
Steering wheel adjustment V
Front window wiper X*
Rear window wiper blade V
Side window wipers blade V
Cab air filter V
Seat V

Machine body

Front cover V
Left hand cover V
Right hand cover V
Rear cover V

Functional test

Engine oil pressure low idle cold 4.3
Engine oil pressure high idle cold 5.1
Engine oil pressure low idle operating temperature 2.8
Engine oil pressure high idle operating temperature 4.5
Hydrostatic drive neutral V
Transmission shifting V
4WD working V
Foot brakes L/R V
Parking brake V
Main clutch working V
Autolube V
Length of cutt adjustment V
Header speed adjustment V
Header height control V
Header Lateral Tilt - if applicable V
Front hydraulics V
Dump valve (high flow hydraulics) N.A.
Spout turning V
Metal detector V
Spout deflector V
Sharping system V
Shearbar adjustment V
Cutterhead reverser V
Kernel Processor gap adjustment V
Airconditioning cold V
Cab heating V
Electrical functions cabin V
Camera(s) V
Radio V
Road & Working Lights V
Free of error codes V

Header

Stocknumber 25021
Brand New Holland
Model 600SFI
Amount of rows 8
Working width (cm) 600
Autosteer sensor V
Header lateral tilt N.A.
Header height control sensors N.A.
Cutting knives 4
Drum bearings V
Cleaners V
Drums V
Drum cleaners / scrapers V
knife discs V
Drive shaft V
Drive line couplers V
Drive chains and belts N.A.
Crop dividers V
Oil levels V
Down corn augers N.A.
Ground skid plates V
Fold cilinders X*
Hydraulic hoses/lines V
Transport accident prevention N.A.
Support wheel(s) N.A.
Support legs V
Wearplates V
