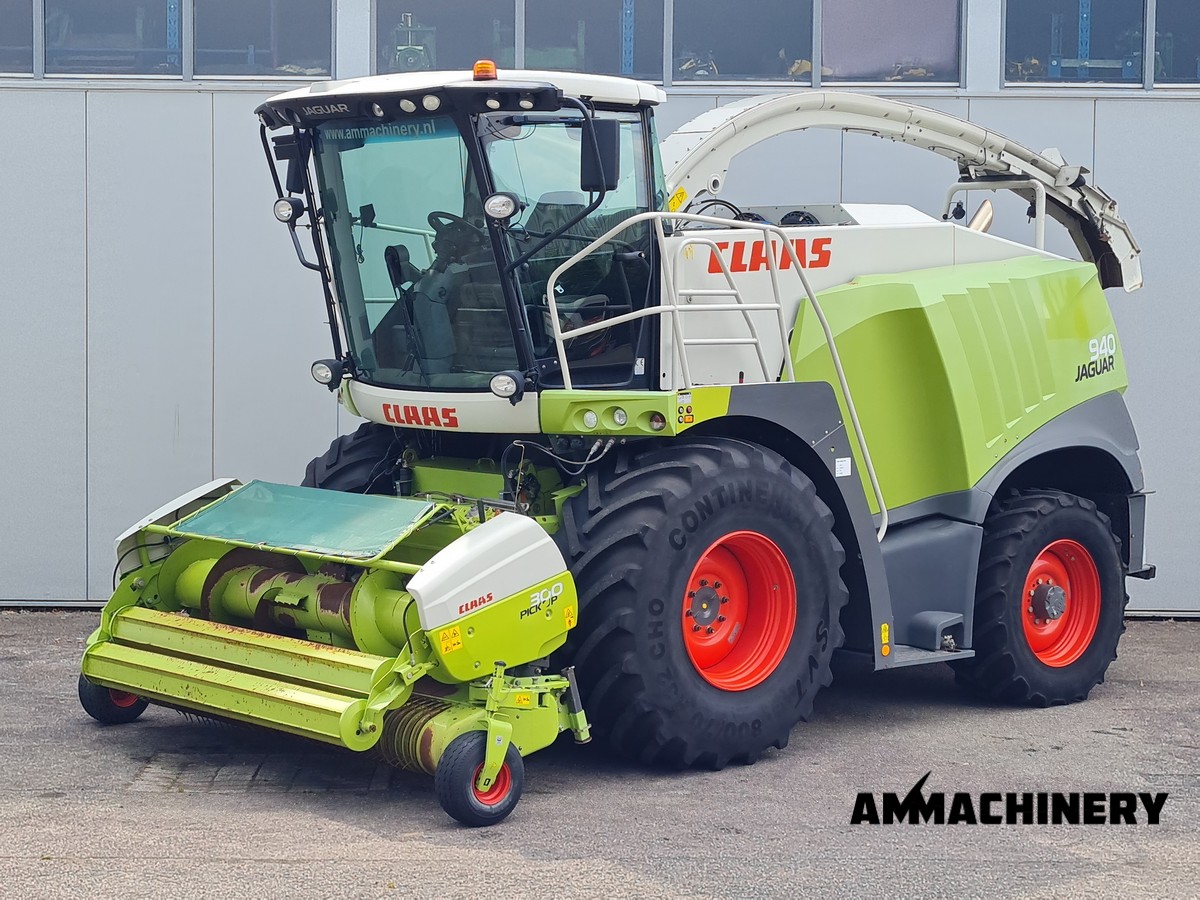

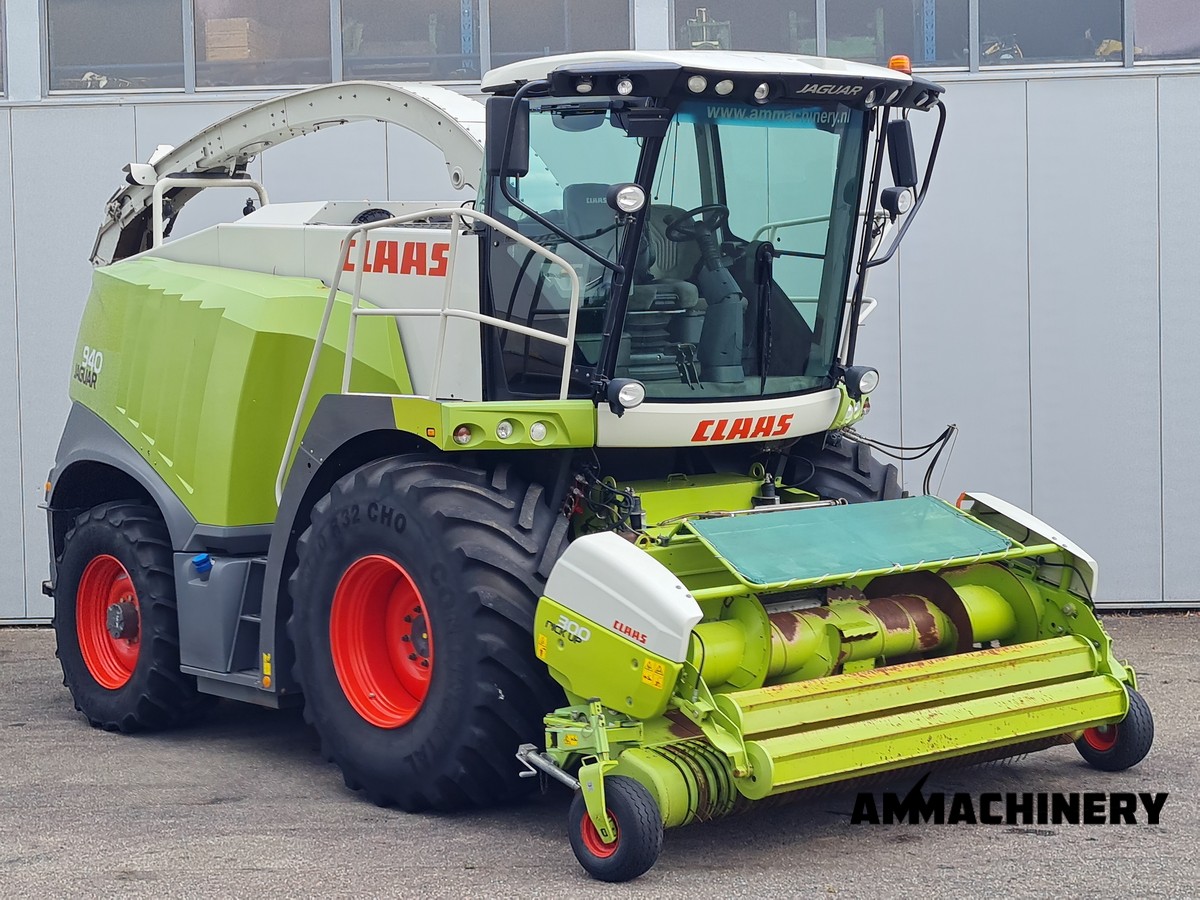

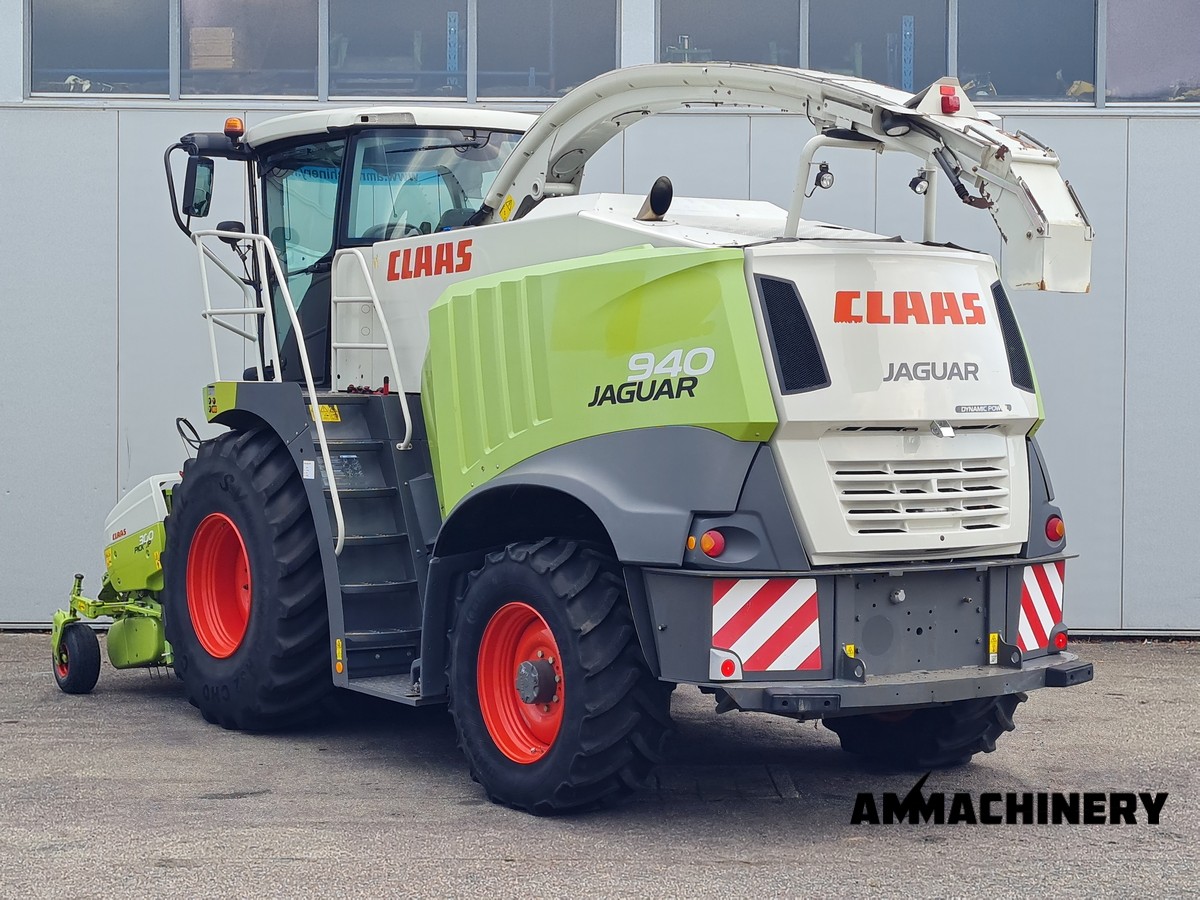

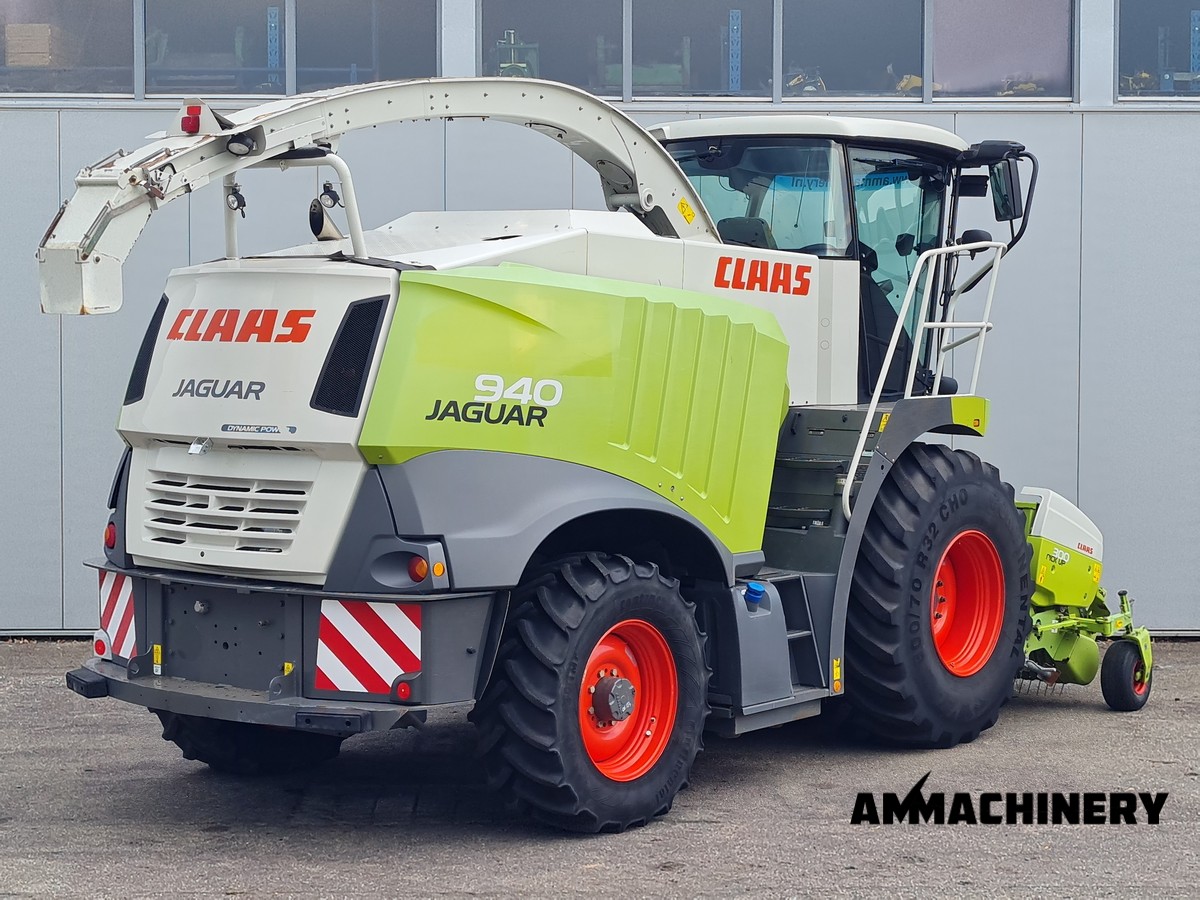

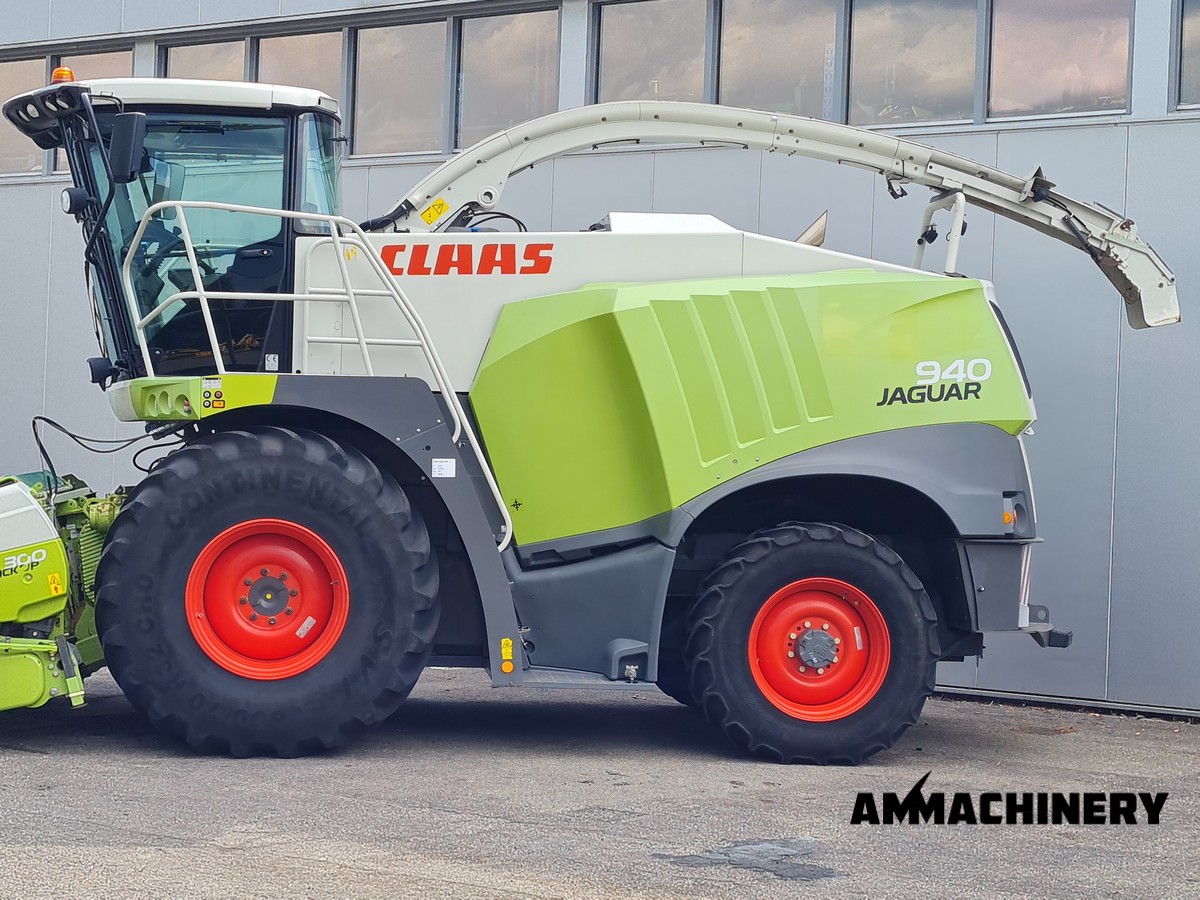

Claas Jaguar 940

For sale 2014 Claas Jaguar 940 including Claas PU300PRO
- 4WD
- 40KM/H
- 24 knife drum
- corn cracker
- automatic lubrication
- rock stopper
- camera

Claas Jaguar 940

For sale 2014 Claas Jaguar 940 including Claas PU300PRO
- 4WD
- 40KM/H
- 24 knife drum
- corn cracker
- automatic lubrication
- rock stopper
- camera

Price on request

When you enter your E-mail address, we will send you the Dekra report.

Technical specifications

Stock Number 25079-30
Brand Claas
Model 940
Series 497
Engine hours 3467
Road speed (km/h) 40
Drum hours 2349
Attr 2 or 4 wheel drive 4 WD
Engine Brand Mercedes-Benz
Engine type V8
Engine Power HP 510
Engine Power (KW) 375
Front Tires Brand Continental
Rear Tires Brand Continental
Front Tires Size 800/70 r32
Rear Tires Size 540/65 r30
Front Tires profile 55
Rear Tires Profile 45
Emission Level Tier 4 (Adblue)

Type knife drum V-max
Knife drum 24
Amount of knives installed 24

Kernel processor type Saw tooth

Options

Auto lubrication Yes
Rockstopper Yes
Spout extension Yes
Automatic spout rotation Yes
Spout camera Yes
Rear view camera Yes
Yield mapping Yes
Innoculant factory installed Yes
Climate control Yes
Electrical adjustable mirrors Yes
Electrical heated mirrors Yes
Refrigurator Yes
Side window wipers Yes
Rear window wiper Yes
Electrical KP-gap adjustment Yes
Air compressor Yes
Sunblinds window(s) Yes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Machine documents

Harvester Guard ®Inspection certificate

Image gallery

Load more images >>>

Innovation
Knowledge
Quality
Transparent

AM: Harvester Guard® Inspection Report

V = working | X* = not working, note repair recommendations | n.a. = not applicable

New
- 5
Like New
- 4
Good
- 3
Fair
- 2
Poor
- 1

Levels

Anti-freeze level in °C - 35 °C
Cooling liquid level V
Engine oil level X*
Hydraulic oil level V
Left hand front end drive oil level V
Rear axle oil level V
Left hand rear end drive oil level X*
Right hand rear end drive oil level X*
Upper feedrolls gearbox oil level X*
Gearbox oil level V
Fan drive gearbox oil level V
Main gearbox pump drive X*
Gearbox oilpump mainbelt V

Knive drum

Type knife drum V-max
Knife drum 24
Amount of knives installed 24
Knife condition 38%%
Knife drum configuration Universal
Shearbar front surface 1
Shearbar rear surface 1
Shearbar active position Rear
Left hand Knife drum bearing V
Right hand Knife drum bearing V
Knife drum bottom plate 2
Knife drum rear plate 3
Knife drum front cover 3
Knife drum stone cover 3
Sharpening stone 4
Left hand lift cilinder V
Right hand lift cilinder V

Kernal processor

Gras chute liner 2
Kernel Processor rolls 3
Kernel Processor front roll 3
Kernel Processor rear roll 3
Kernel processor type Saw tooth
Kernel Processor front roller left hand bearing X*
Kernel processor front roller right hand bearing X*
Kernel processor rear roller left hand bearing X*
Kernel processor rear roller right hand bearing X*
Kernel Processor drive belt 3
Kernel Processor drive tensioner bearings X*
Kernel Processor drive idler roller X*
Kernel Processor housing 3
Tensioner springs gap adjustment V

Feedrolls

Upper front feedroll 3
Upper front feedroll wear strips 3
Upper rear feedroll 3
Metal detector roll 3
Metal detector roll wear strips 3
Smooth roll 2
Smooth roll scraper 2
Upper front feedroller left hand bearing V
Upper rear feedroller left hand bearing V
Upper rear feedroller right hand bearing V
Metal detector roll left hand bearing V
Metal detector roll right hand bearing V
Smooth roll left hand bearing V
Smooth roll right hand bearing X*
Main drive feedrolls V
Belt main drive feedrolls V
Tensioner belt main drive feedrolls V
Upper feedroller arm bushing X*
Feeder housing wear plates 2
Housing opening rubbers X*
Upper feedrolls drive shaft X*
Upper feedrolls tension springs V
Upper feedrolls shock absorber X*
Upper feedrolls arm Bump stops X*
Upper feedrolls gearbox X*
Loc gearbox V

Corn cave

Corn cave liner 3
Corn cave side liners 2
Corn cave top liner 3

Blower

Blower paddles 20%
Blower liner 3
Blower housing V
Left hand blower bearing V
Right hand blower bearing V
Blower angled liner V

Transition housing

Transition housing 3
Transition liners 3

Spout

Spout turnable wear shims 3
Spout swivel tube 3
Spout complete housing 3
Spout front liner 2
Spout rear liner 3
Spout side liners 2
Spout extention 3
Spout extention liner 3
Inner Spout deflector 3
Outer Spout deflector 3
Spout deflector liners 1

Engine

Dry engine V
Waterpump bearings V
Engine belting V
Engine belt tensitioners X*
Exhaust system V
Engine mounting X*
Airfilters X*
Rotary air screen X*
Rotary air screen rollers X*
Cleaner cooling package V
Engine belting idler roller X*
Fan drive gearbox V

Main drive

Main clutch 3
Main drive belt 4
Main belt tensioner bearings V

Operators station

Front window V
Rear window V
Cab door V
Cab door latch V
Cab right hand window V
Cab roof V
Cab front bottom cover V
Mirrors V
Joystick X*
Armrest control panel V
Steering wheel adjustment V
Front window wiper V
Rear window wiper blade V
Side window wipers blade V
Cab air filter X*
Seat V

Machine body

Front cover V
Left hand cover V
Right hand cover V
Rear cover V

Functional test

Engine oil pressure low idle cold 5.6
Engine oil pressure high idle cold 7
Engine oil pressure low idle operating temperature 2.5
Engine oil pressure high idle operating temperature 5.3
Hydrostatic drive neutral V
Transmission shifting V
4WD working V
Foot brakes L/R V
Parking brake V
Main clutch working V
Autolube V
Length of cutt adjustment V
Header speed adjustment N.A.
Header height control V
Header Lateral Tilt - if applicable N.A.
Front hydraulics V
Dump valve (high flow hydraulics) N.A.
Spout turning V
Metal detector V
Spout deflector V
Sharping system V
Shearbar adjustment V
Cutterhead reverser N.A.
Kernel Processor gap adjustment X*
Airconditioning cold V
Cab heating V
Electrical functions cabin V
Camera(s) V
Radio V
Road & Working Lights V
Free of error codes V

Header

Stocknumber 23032
Brand Claas
Model Pu300
Hydraulic hoses / lines V
Compression rollers Yes
Pick-up teeth V
Pick-up cam bearings V
Compression rollers bearings V
Feeder auger V
Feeder auger bearings V
Feeder auger fingers X*
Drive chains and sprockets V
Working width (cm) 300
Oil levels V
