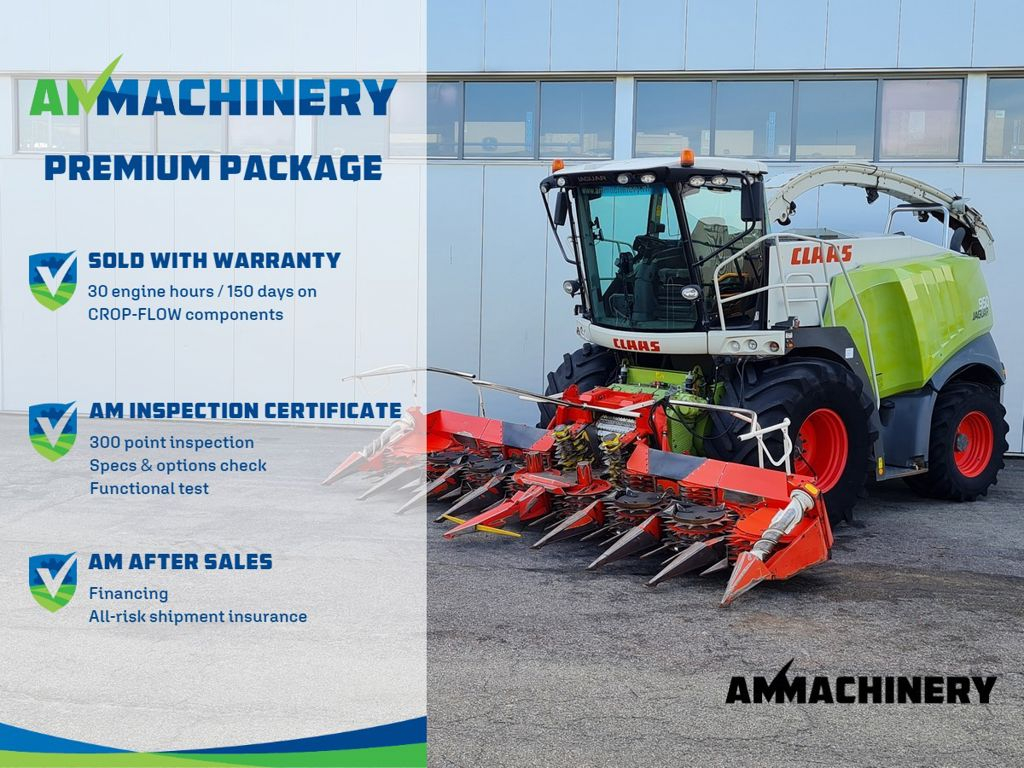

Claas Jaguar 950

Description

For sale 2011 Claas Jaguar 950 forage harvester, 4WD, including Kemper 360 Plus 8 row corn header, 5395 engine hours and 3828 cutting hours, 24 knife drum, kernel processor (corn cracker), automatic lubrication, spout camera with autofill, Moisture sensor, Rockstopper and tire pressure system. This forage harvester will undergo a 300 point inspection, after which it will be sold with a warranty. This way you always know exactly what the state of your latest investment will be.

€124.500,00 VAT and transportation not included

#23093

When you enter your E-mail address, we will send you the Dekra report.

Technical specifications

Partnumber 23093
Brand Claas
Model 950
Year of manufacture 2011
Series 494
Engine hours 5395
Road speed (km/h) 40
Drum hours 3828
Attr 2 or 4 wheel drive 4 WD
Engine Brand Mercedes-Benz
Engine type V8
Engine Power HP 530
Engine Power (KW) 390
Front tyres brand Michelin
Back tyres brand Michelin
Front Tires Size 900/60R32
Rear Tires Size 600/65R28
Front Tires profile 36
Rear Tires Profile 62
Emission Level Tier 3

Type knife drum V-max
Knife drum 24
Amount of knives installed 24

Kernel processor type Saw tooth

Options

Auto lubrication Yes
Rockstopper Yes
Spout extension Yes
Automatic spout rotation Yes
Autofill Yes
Spout camera Yes
Rear view camera Yes
Yield mapping Yes
Moisture mapping Yes
Printer Yes
NIR sensor Yes
NIR sensor cabling Yes
Tire pressure system Yes
Innoculant factory installed Yes
Climate control Yes
Electrical adjustable mirrors Yes
Electrical heated mirrors Yes
Refrigurator Yes
Side window wipers Yes
Rear window wiper Yes
Electrical KP-gap adjustment Yes
Air compressor Yes
Xenon lights Yes
Sunblinds window(s) Yes
Operators manual Yes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Image gallery

Innovation
Knowledge
Quality
Transparant

AM:Harvester Guard® Inspection Report

V = working | X* = not working, note repair recommendations | n.a. = not applicable

New
- 5
Like New
- 4
Good
- 3
Fair
- 2
Poor
- 1

Levels

Anti-freeze level in °C - 35 °C
Cooling liquid level V
Engine oil level X*
Hydraulic oil level V
Left hand front end drive oil level V
Rear axle oil level V
Left hand rear end drive oil level V
Right hand rear end drive oil level V
Upper feedrolls gearbox oil level X*
Gearbox oil level V
Fan drive gearbox oil level V
Main gearbox pump drive V
Gearbox oilpump mainbelt V

Condition Knive drum

Type knife drum V-max
Knife drum 24
Amount of knives installed 24
Knife condition 52%
Knife drum configuration Corn
Shearbar front surface 3
Shearbar rear surface 3
Shearbar active position Rear
Left hand Knife drum bearing V
Right hand Knife drum bearing V
Knife drum bottom plate 3
Knife drum rear plate 3
Knife drum front cover 3
Knife drum stone cover 1
Sharpening stone 3
Left hand lift cilinder V
Right hand lift cilinder V

Kernal processor

Gras chute liner 2
Kernel processor rolls 2
Kernel processor type Saw tooth
Kernel processor front roller left hand bearing X*
Kernel processor front roller right hand bearing V
Kernel processor rear roller left hand bearing V
Kernel processor rear roller right hand bearing V
Kernel processor drive belt 3
Kernel processor drive tensioner bearings V
Kernel processor drive idler roller X*
Kernel processor housing 3
Tensioner springs gap adjustment V

Feedrolls

Upper front feedroll 3
Upper front feedroll wear strips 3
Upper rear feedroll 2
Metal detector roll 3
Metal detector roll wear strips 1
Smooth roll 3
Smooth roll scraper 3
Upper front feedroller left hand bearing V
Upper rear feedroller left hand bearing X*
Upper rear feedroller right hand bearing X*
Metal detector roll left hand bearing V
Metal detector roll right hand bearing V
Smooth roll left hand bearing V
Smooth roll right hand bearing V
Main drive feedrolls X*
Belt main drive feedrolls V
Tensioner belt main drive feedrolls V
Upper feedroller arm bushing V
Feeder housing wear plates 3
Housing opening rubbers X*
Upper feedrolls drive shaft V
Upper feedrolls tension springs V
Upper feedrolls shock absorber V
Upper feedrolls arm bump stops V
Upper feedrolls gearbox X*
LOC Gearbox X*

Corn cave

Corn cave liner 3
Corn cave side liners 3
Corn cave top liner 3

Blower

Blower paddles 0%
Blower liner 3
Blower side liners 3
Blower housing V
Left hand blower bearing V
Right hand blower bearing X*
Blower angled liner V

Transition housing

Transition housing 3
Transition liners 3

Spout

Spout turnable wear shims 3
Spout swivel tube 3
Spout complete housing 3
Spout front liner 1
Spout rear liner 3
Spout side liners 3
Spout extention 3
Spout extention liner 3
Inner Spout deflector 1
Outer Spout deflector 3
Spout deflector liners 1

Engine

Dry engine V
Waterpump bearings V
Engine belting V
Engine belt tensitioners X*
Exhaust system V
Engine mounting V
Airfilters V
Rotary air screen V
Rotary air screen rollers V
Cleaner cooling package N.A.
Engine belting idler roller V
Fan drive gearbox V

Operational test Main drive

Main clutch 3
Main drive belt 3
Main belt tensioner bearings V

Drive train

Front drive shaft's and coupler's N.A.
Tires condition X*
Rear axle drive shaft N.A.
Rear axle stub axle X*
Rear axle ball joint X*
Steering cylinders V

Operators station

Front window V
Rear window X*
Cab door V
Cab door latch V
Cab right hand window V
Cab roof V
Cab front bottom cover V
Mirrors V
Joystick V
Armrest control panel V
Steering wheel adjustment V
Front window wiper V
Rear window wiper blade V
Side window wipers blade X*
Cab air filter X*
Seat V

Machine body

Front cover V
Left hand cover X*
Right hand cover V
Rear cover V

Electrical

Head lights V
Rear lights V
Brake lights V
Turn signal/hazard lights V
Rotary beacon V
Dome lights V
Cab upper front work lights V
Cab side work lights V
Fender work lights V
Upper rear work lights N.A.
Lower rear work lights N.A.
Spout work lights X*
Fuel gauge V

Functional test

Engine oil pressure low idle cold 4.8
Engine oil pressure high idle cold 5.0
Engine oil pressure low idle operating temperature 2.5
Engine oil pressure high idle operating temperature 4.2
Hydrostatic drive neutral V
Transmission shifting V
4WD working (if applicable) V
Foot brakes L/R V
Parking brake V
Main clutch working V
Autolube V
Length of Cutt adjustment V
Header speed adjustment N.A.
Header height control V
Header Lateral Tilt (if applicable) N.A.
Front hydraulics V
Dump valve (high flow hydraulics) N.A.
Spout turning V
Metal detector V
Spout deflector V
Sharping system V
Shearbar adjustment V
Cutterhead reverser N.A.
Kernel processor gap adjustment V
Airconditioning cold V
Electrical functions cabin V
Camera(s) V
Radio V
Road & Working Lights V
Free of error codes X*

Header

Stocknumber 22201
Brand Kemper
Model 360
Amount of rows 8
Working width 6000
Autosteer sensor V
Header lateral tilt N.A.
Header height control sensors N.A.
Header speed gearbox shifting V
Cutting knives 3
Drum bearings V
Cleaners V
Drums V
Drum cleaners / scrapers V
Knife discs V
Drive shaft V
Drive line couplers X*
Drive chains and belts V
Crop dividers V
Oil levels X*
Down corn augers V
Ground skid plates X*
Fold cilinders V
Hydraulic hoses/lines V
Transport accident prevention N.A.
Support wheel(s) N.A.
Support legs V
Feeder auger N.A.
Feeder auger bearings N.A.
Wearplates V
